VALENTINI POWERSYNTAX® / BACKUP POWER
The generator is only part of the solution. Prepare the connection that gets its power where it needs to go.
PowerSyntax® by Valentini. Supplied by Dpower.
Connectors. Cable assemblies. Connection panels.
Prepared for your application.
PLAN FOR THE OUTAGE.
Dpower helps you specify the complete connection: the right connector type, cable length, termination and panel configuration. One practical offer, built around your generator, your site and the way your team works.
SPECIFIED FOR YOUR SITE.
01 / 03
Connectors
02 / 03
Cable assemblies
03 / 03
Connection panels
01 / THE INTERFACE
Powerlock-compatible single-pole connectors in 480 A and 750 A versions. Mechanical keying helps prevent incorrect mating, while colour coding and permanent markings identify each conductor.
Current rating depends on the selected contact and configuration.

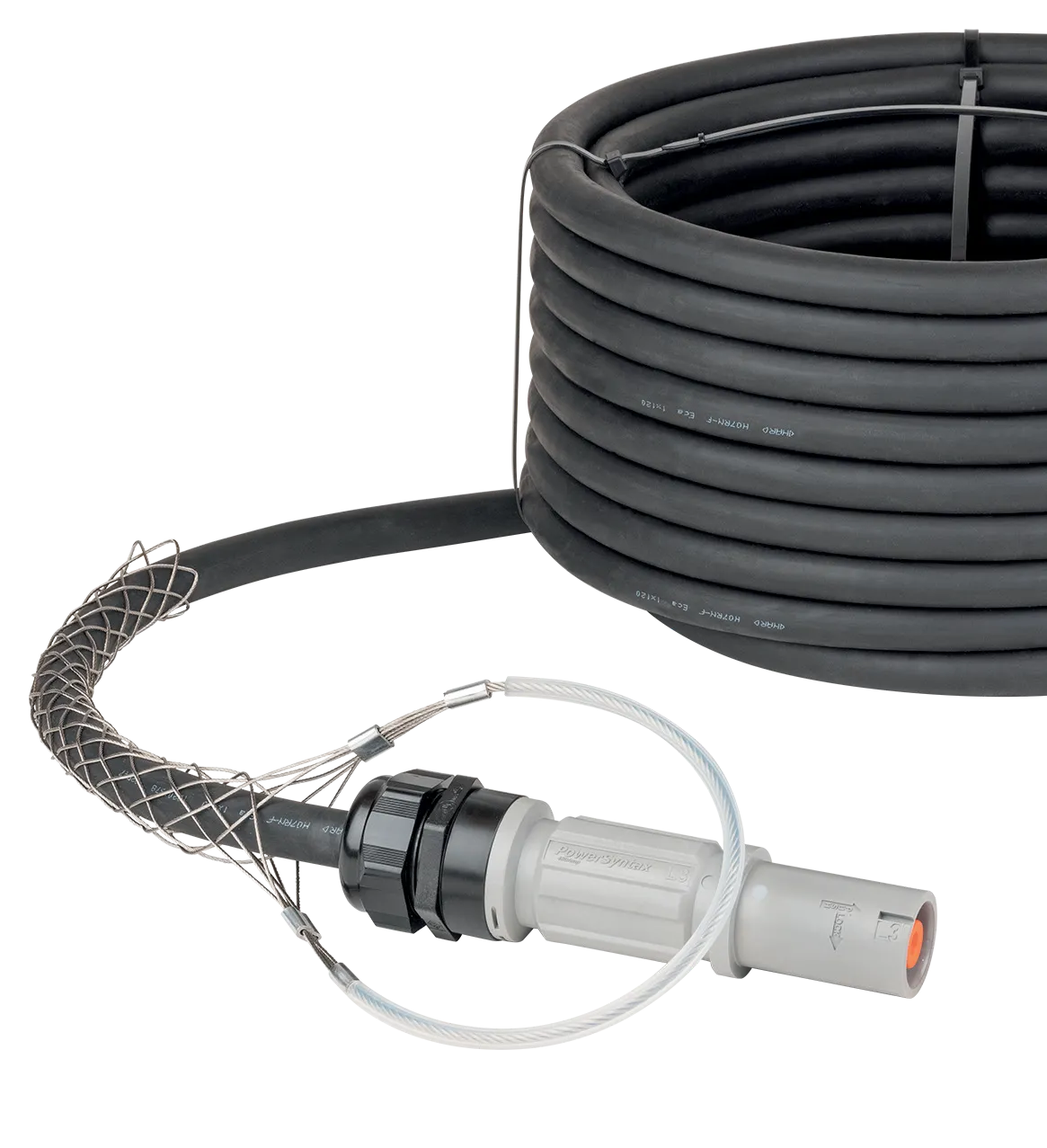

02 / THE REACH
Bring us your cable run and connection requirements. Dpower helps define assemblies with the length, conductor size and terminations your installation needs.
Plan the route, handling and storage alongside the electrical specification — so the cable solution works on site as well as on paper.

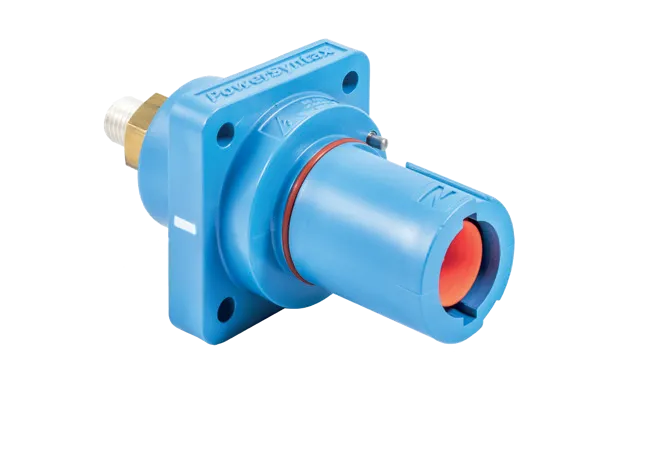

03 / THE CONNECTION POINT
Panel-mounted connections create a defined interface between the supply and the installation. Select source or drain connectors, the required conductor arrangement and a panel format suited to your equipment.

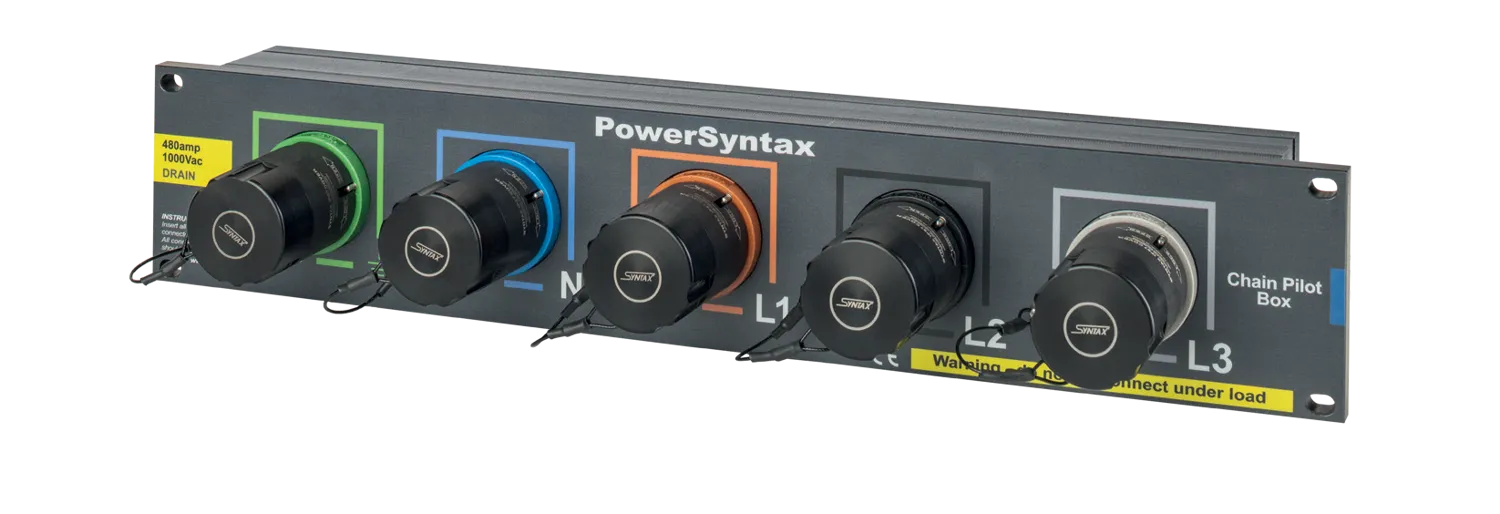

CHAIN PILOT BOX / CONNECTION MONITORING
A connection should be confirmed before power is enabled. Chain Pilot puts that logic into the interface.
01
Built-in microswitches monitor the mating of the connectors for phases, neutral and protective earth in the selected configuration.
02
The auxiliary circuit connects to an external breaker or contactor. Power is enabled only once all required connectors are mated.
03
If a connector is disconnected, the auxiliary circuit signals the external switching device to de-energise the connection.
The interlock function requires a correctly designed auxiliary circuit and external switching device. Dpower helps define the configuration for your system.
BACKUP POWER / REAL REQUIREMENTS
01
Match the generator’s output interface with cable assemblies and a prepared connection point at the receiving site.
Generator → site
02
Prepare connection requirements for facilities such as food retail, healthcare and municipal operations, as part of the site’s backup power plan.
Prepared connection
03
Define temporary supply connections for planned shutdowns and service work, with a configuration suited to the equipment and operating procedures.
Temporary supply
04
Specify connectors and cables between the generator and the load bank, taking current, cable routing and repeated handling into account.
Generator → load bank
FROM REQUIREMENT TO QUOTATION
A connector set, a cable assembly or a panel configuration — tell us what you need to connect. We help turn the requirement into a defined scope and a quotation.
01 / Tell us the application
Equipment, supply type, required current and intended use.
02 / Define the configuration
Connectors, conductors, cable lengths, terminations and interlock requirements.
03 / Get a specified offer
A clear delivery scope, price and availability for the agreed configuration.
PowerSyntax 2026 · PDF · 68 pages
YOUR DPOWER CONTACTS
SALES & QUOTATIONS
Sales Manager – Industrial
TECHNICAL CONFIGURATION
Sales Engineering
